Material: Stainless steel
Process: CNC Turning
Finish: Cleaning

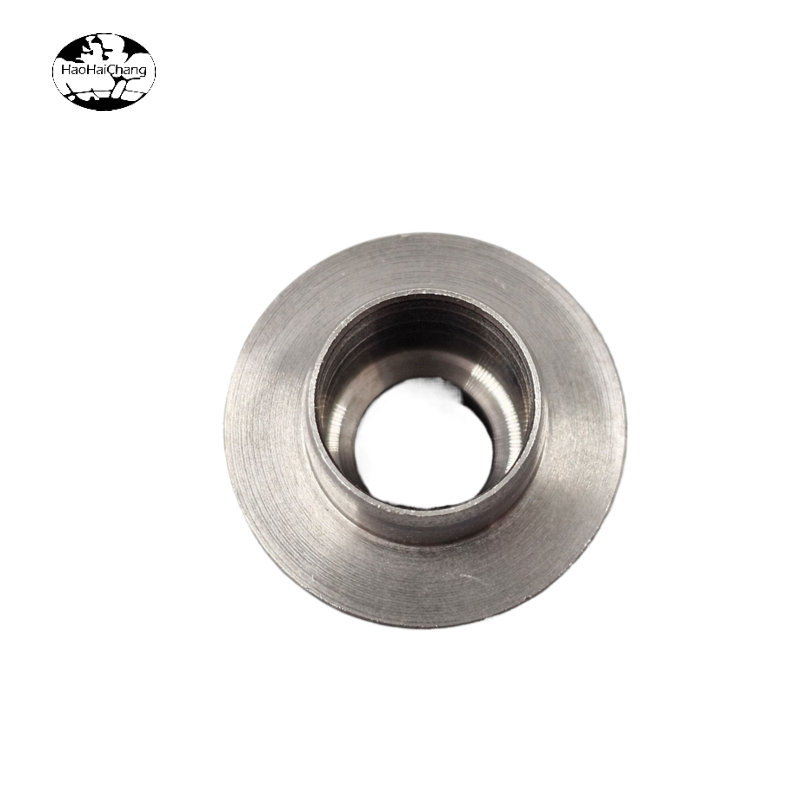

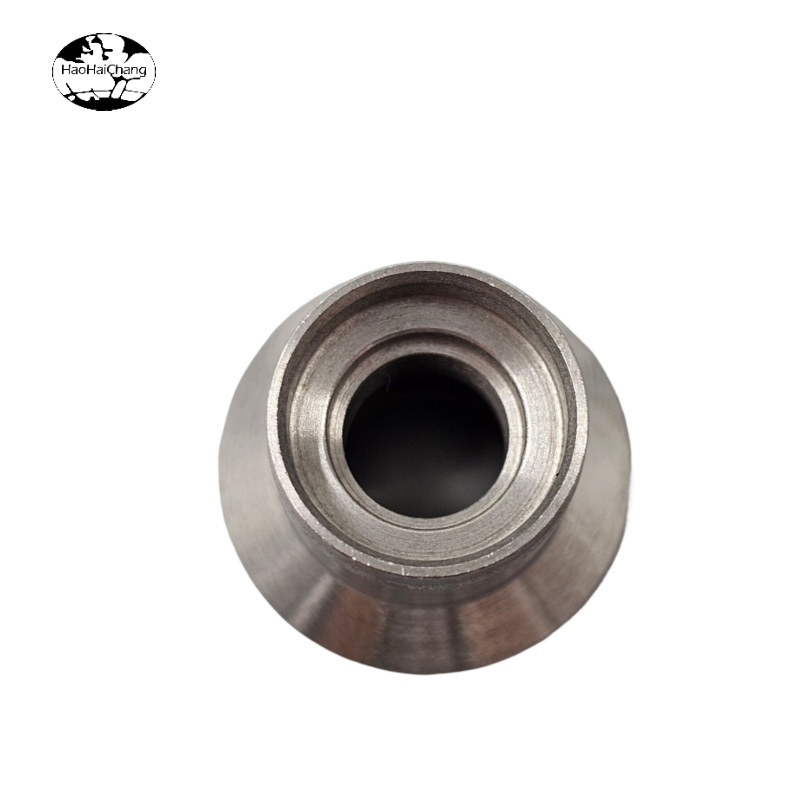

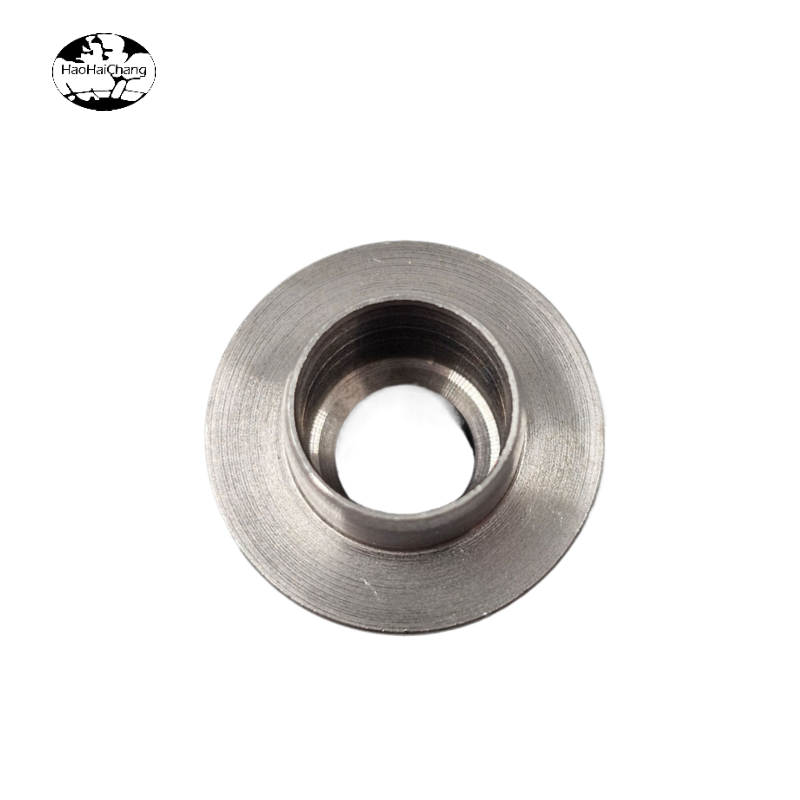

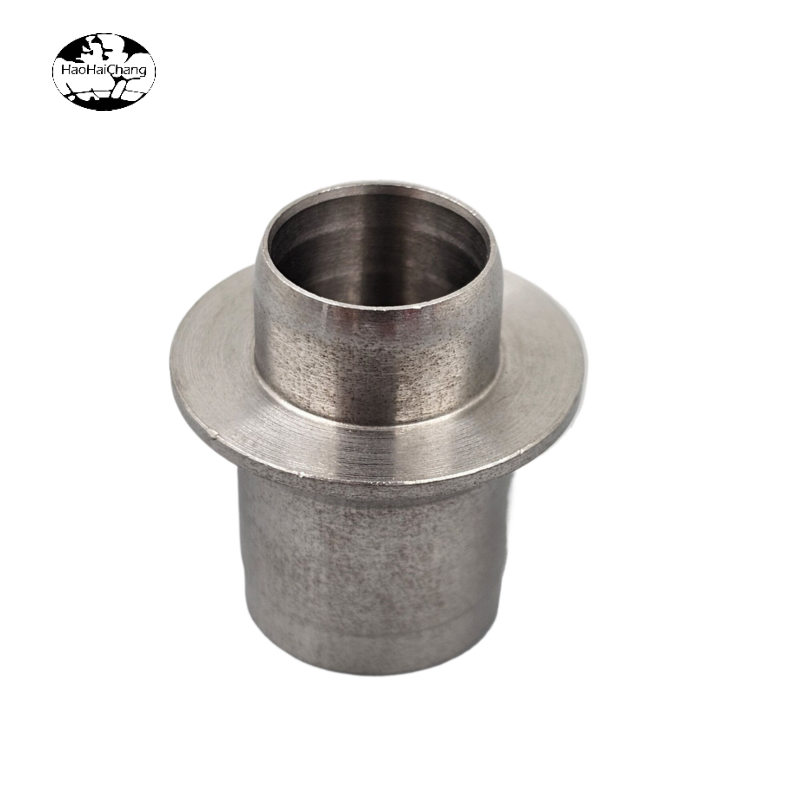

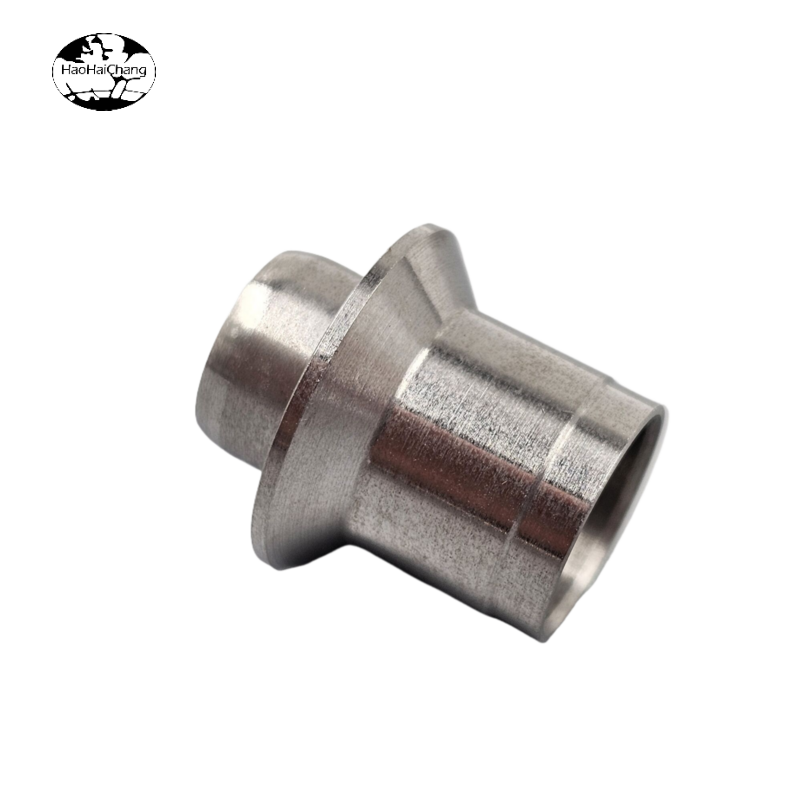

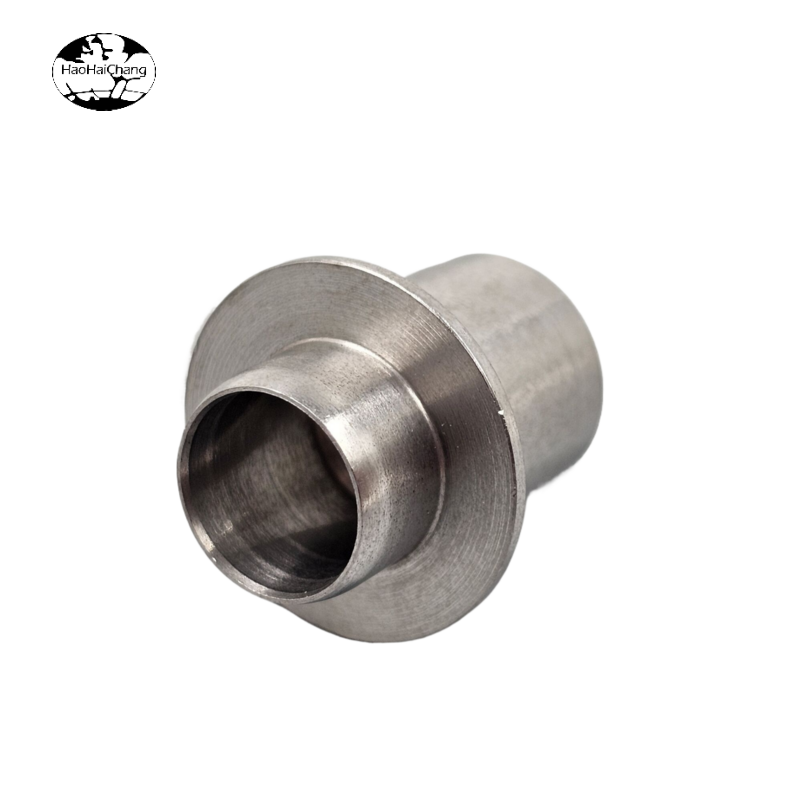

We are HHC Precision, a leading manufacturer specializing in precision metal hardware components. Our HHC-1208 Stainless Steel Flanged Bushing Sleeve Connector is machined from SUS304 to exact Φ18.2 × 19.4 dimensions, featuring crisp flange edges and smooth internal bores. Multi-axis CNC turning, specialized fixturing, and rigorous inspection deliver tight tolerances and reliable assembly performance.
| Product Name | HHC-1208 Stainless Steel Flanged Bushing Sleeve Connector |
Material Options | SS304, SS316, SS316L, SS303, SS410, custom grades available |
| Diameter Range | 10-60mm, customizable |
| Length Range | 8-50mm, customizable |
| Thickness: | 1-5mm, based on load requirements |
| Tolerance | ±0.01 mm |
| Hardness | HV180-280, adjustable per application |
| Manufacturing Process: | CNC Turning, Deep Drawing, Precision Borin |
| Applications | Industrial machinery, Hydraulic systems, Bearing housings, Automotive components, Medical equipment, Marine hardware |
| Certifications: | IATF16949:2016,ISO9001:2015,ISO13485:2016,ISO14001:2015,AS9100D, |
| Packaging Details: | Packaged in plastic bags, then placed in carton boxes, or as per clients' specific requirements. |
| Shipping Port | Shenzhen or Hong Kong |
| Production Lead Time | |
| Quantity (pieces) 1 - 5000 | 10 days |
| Quantity (pieces) > 5000 | To be negotiated |
| Customization Services | |
| Customized logo | Min. order 2 |
| Customized packaging | Min. order 2 |
| Graphic customization | Min. order 2 |
