Material: Brass
Process: Brass stamping
Finish: Tin plating

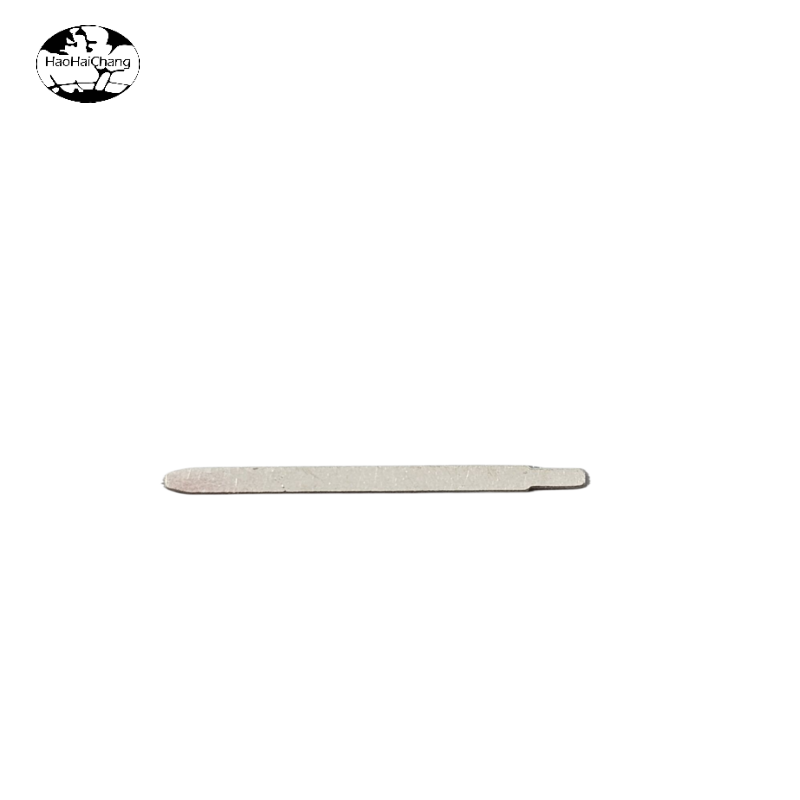

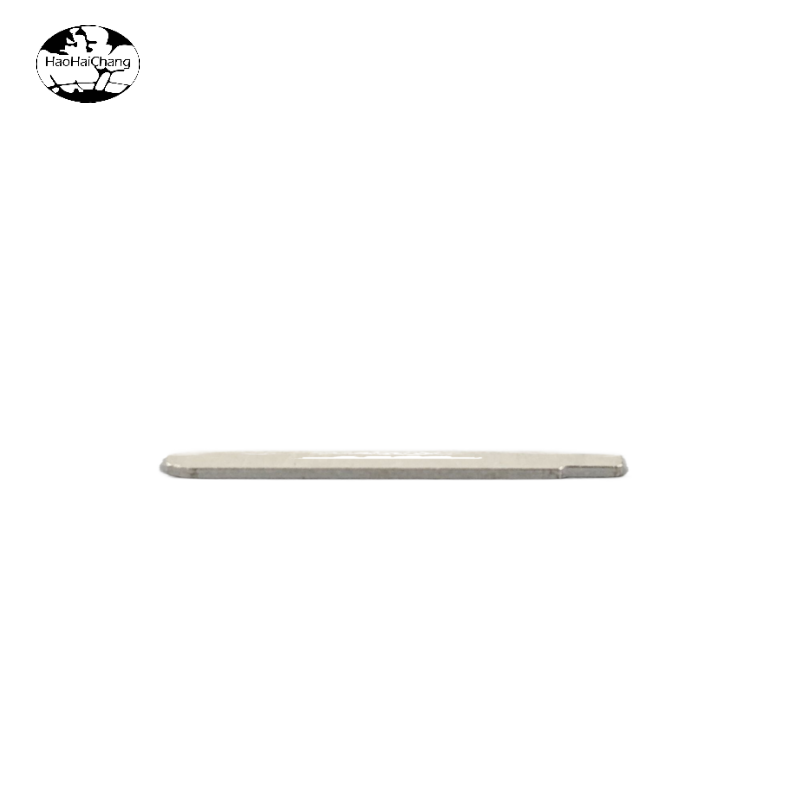

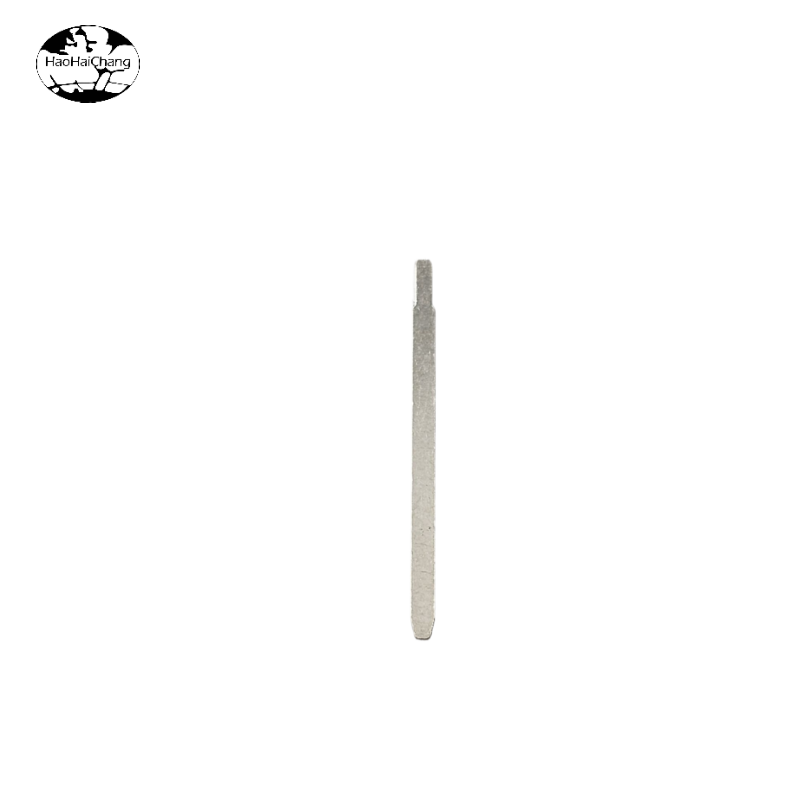

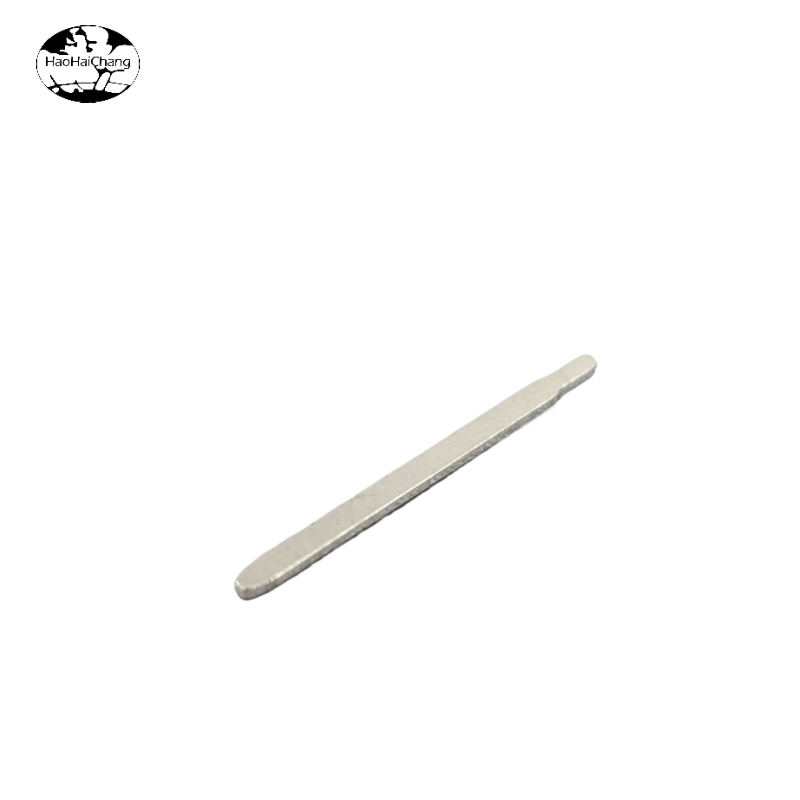

We are HHC Precision, a leading manufacturer specializing in precision metal hardware components. Our team crafts the HHC-1198 Flat Slotted Shaft Alignment Tool from premium brass, with exacting tolerances of 42 × 0.6 mm and 17.3 × 1.1 × 0.6 mm. Advanced CNC machining and meticulous finishing processes deliver consistently reliable, repeatable alignment performance for demanding applications.
| Product Name | HHC-1198 Flat Slotted Shaft Alignment Tool |
| Standard Compliance | |
| Certifications | IATF16949 2016; ISO9001 2015; ISO14001:2015; RoHS; REACH |
| Packaging Details | Packaged in plastic bags, then placed in carton boxes, or as per clients' specific requirements. |
| Additional Product Specifications | Thickness: Up to 100 mm (standard 42 mm), |
| Length Range: Up to 100 mm (standard 42 mm), | |
| Diameter Range: Client-specified (e.g. 2–50 mm), | |
| Tolerance: ±0.01 mm | |
| Hardness: 60–80 HB | |
| Color: Tin-plated silver (other platings available) | |
| Manufacturing Process: Precision stamping, custom punching, forming, deburring, plating | |
| Applications: Electronics connectors, automotive sensors, industrial alignment fixtures | |
| Material Options | Brass (standard) |
| Other copper alloys upon request |
| Shipping Port | Shenzhen or Hong Kong |
| Production Lead Time | |
| Quantity (pieces) 1 - 10,000 | 10 days |
| Quantity (pieces) > 10,000 | To be negotiated |
| Customization Services | |
| Customized logo | Min. order 100(pieces) |
| Customized packaging | Min. order 100(pieces) |
| Graphic customization | Min. order 100(pieces) |
